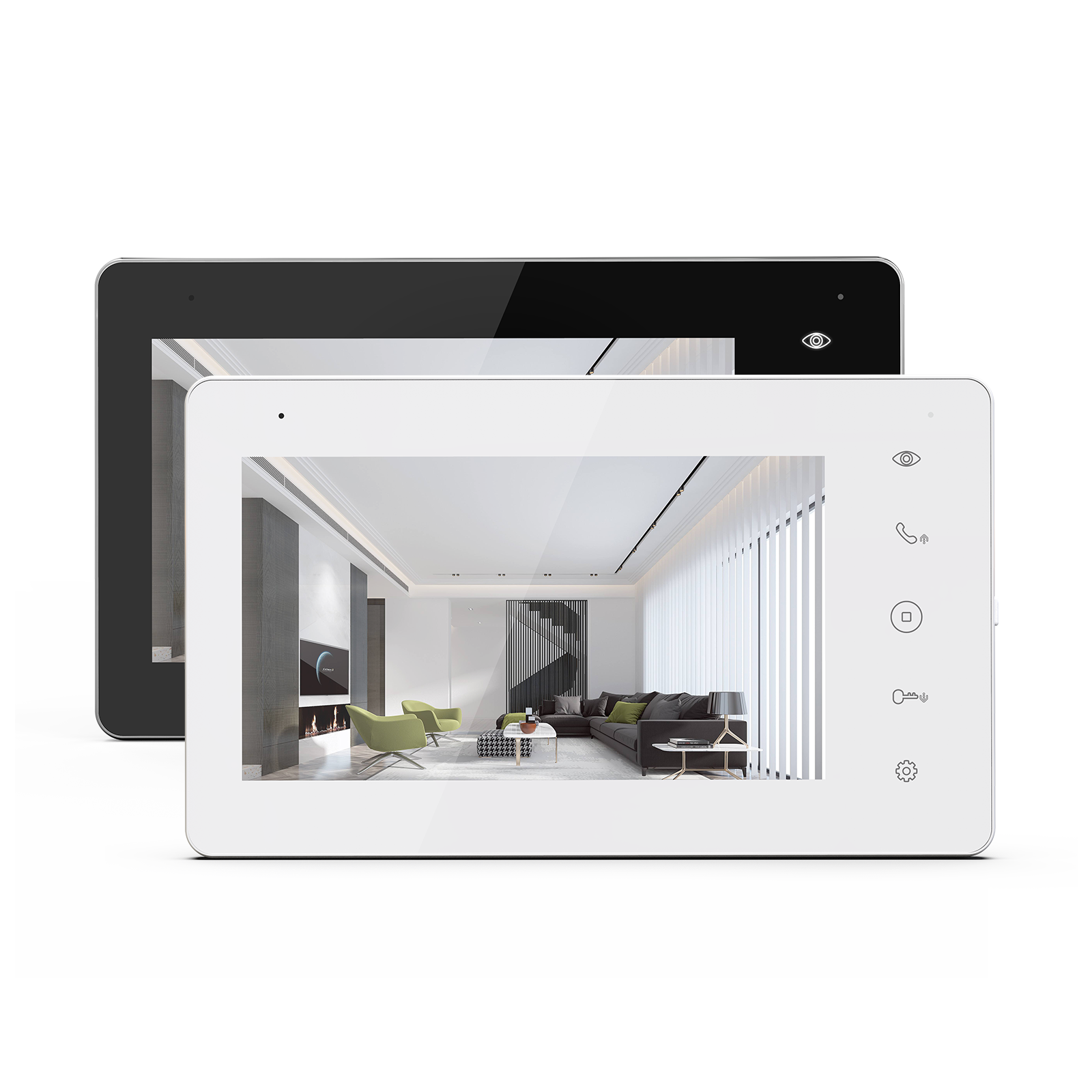

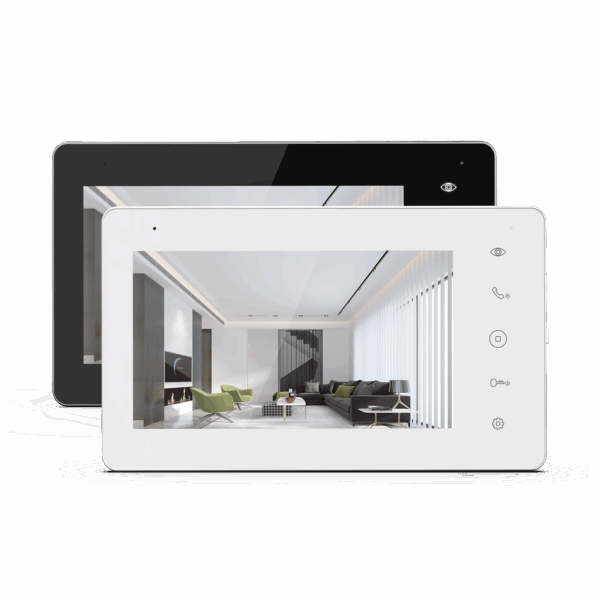

ER009HD

•  Screen： 7″ IPS Screen
•  TFT Resolution： 1024×600
•  Signal Supports： 800TVL / 1080P
•  Signal Formats： CVBS / AHD
•  Indoor Monitor Unlock Release： Supports
•  Outdoor Panel Unlock Release： Supports
•  Video & Image Capture： Supports
•  Connection： 4 Wires / CAT-5
•  Max Wire Length Connection： 100 Meters
•  Max Additional Monitors： 3
•  Video Channels： 4
•  Power Consumption： 9W(Max), 2.5W(Standby)
•  Power Supply： AC110-240V / DC15V/0.8A
•  Dimension： 215x126x20mm

PRODUCT DETAIL

1080P 7″ video door phone with touch buttons
HD IPS screen 1024*600 & HD glass
Customize UI & Melody & Voice message
Button light background
Support max.128G SD Card & flash max.100pcs picture
Lock control / Broadcast / Calendar / Alarm clock / No disturb
Monitor doorbell or CCTV cameras
Door-call transfers to other monitors
Make calls between monitors
Monitor listening to another monitor
Simple DVR motion detection/Photo frame/Multimedia manager
Auto leave message function
DC15V/0.8A / AC100-240V 50/60Hz (Optional)

Supports:

* 2 outdoor doorbells+4 indoor monitors+2 CCTV cameras

* 1 outdoor doorbell+4 indoor monitors+3 CCTV cameras

* Door Panel unlock & Indoor monitor unlock
