ED004-2A

Short Description:

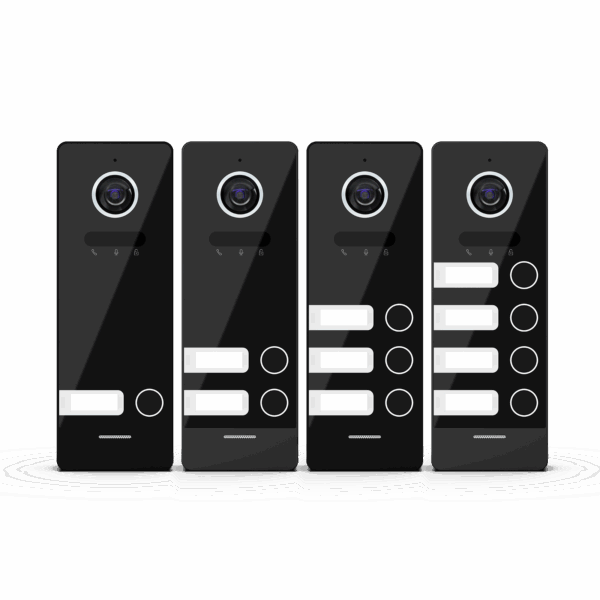

1080P AHD Metal case All In One Non Polarity Central Power Supply

IP66 waterproof, Night Vision, Metal case, CMOS 2MP HD colorful camera, Two-wire interface, 10M/100M Self-adaptive Etherne

•  Processor： High-Performance Embedded SOC Processor
•  Operation system： Embedded Linux Operation System
•  Camera： CMOS Low Illumination 2 MP HD Colorful Camera
•  Video compression standard： H.265 (default), H264
•  Resolution： 1920×1080
•  Video frame rate： 25 fps
•  Audio input： Built-in Omnidirectional Microphone
•  Audio output： Built-in Loudspeaker
•  Audio compression standard： G.711 U
•  Audio compression rate： 64 Kbps
•  Audio quality： Noise Suppression and Echo Cancellation
•  Light supplement mode： IR supplement
•  PLC rate： Max. 500Mbps
•  Carrier voltage： 18V-36VDC
•  Lock： 1CH NO(NC) relay unlock (MAX AC/DC36V 4A) 1CH NO Gate unlock connector (MAX AC/DC36V 4A)
•  Power supply： 18V-36VDC
•  Viewing Angle： 120°
•  Power consumption： 6W(Max), 3.5W(Standby)
•  Family max.： 2
•  Working temperature： -40°C – 60°C
•  Working humidity： 10% – 90%
•  IP protection level： IP66
•  Dimensions： 154x55x21mm

PRODUCT DETAIL

CMOS 2MP HD colorful camera

Two-wire interface

Wide viewing angle

Support 2 apartments

IR supplement

10M/100M Self-adaptive Etherne

Vandal-proof with full metal case

Support anti-disassembly alarm function
