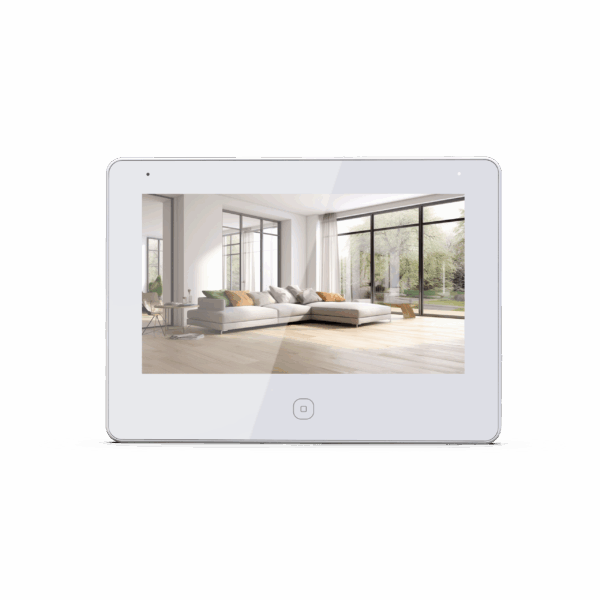

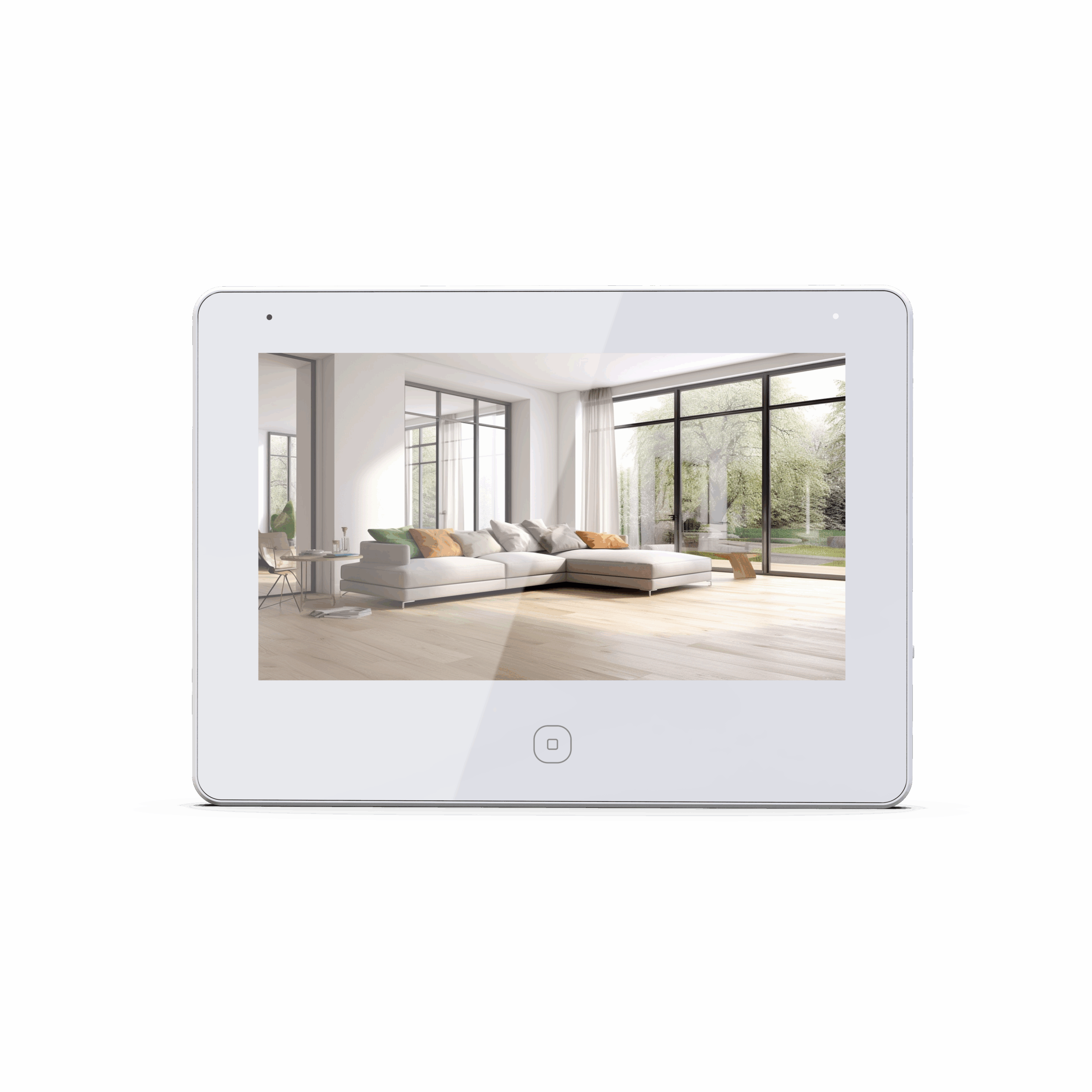

ER012BTW

Flash： 128MB
RAM： 512MB
Operating system： Linux operation system
Display screen： 7″ colorful screen
Display resolution： 1024×600
Operation method： Touch screen
Audio input： Built-in omnidirectional microphone
Audio output： Built-in loudspeaker
Audio compression standard： G.711U
Audio compression rate： 64Kbps
Audio quality： Noise suppression and echo cancellation
Network protocol： TCP/IP, RTSP, SIP
Built-in wifi： 2.4G 802.11 b/g/n
Micro SD card： Max to 128GB, SD 2.0 or lower version
Power supply： POE IEEE 802.3af / AC100-240V 50/60Hz / DC15V/0.8A
Power consumption： 8W(Max), 3W(Standby)
Ringbell： NO (MAX AC/DC36V 4A)
Support pixels： Mainstream: Max 5MP 25FPS camera, Substream: Max 1MP 30FPS camera
Video compression standard： H.265 (default), H264
Working temperature： -10℃-50℃
Working humidity： 10%-90%
Dimensions： 188x136x22mm

PRODUCT DETAIL

1080P 7″ video door phone with touch buttons
HD screen 1024*600
IP Video Intercom System
Quad video recording
Support 8 panels or cameras view
Human detection
Powerful smart mobile APP talk & unlock
Support ONVIF IP cameras
Monitoring of video door bell or CCTV from mobile APP
Push notifications
Customize UI & Melody & Voice message
Button light background
Support max.128GB SD Card & flash max.100pcs picture
Lock control / Calendar / Alarm clock / No disturb
Simple DVR motion detection / Photo frame / Multimedia manager
Auto leave message function
Wi-Fi 802.11b/g/n
POE IEEE 802.3af / AC100-240V 50/60Hz / DC15V/0.8A (Optional)
